Brother PT-E310BTVP Thermal Label Printer

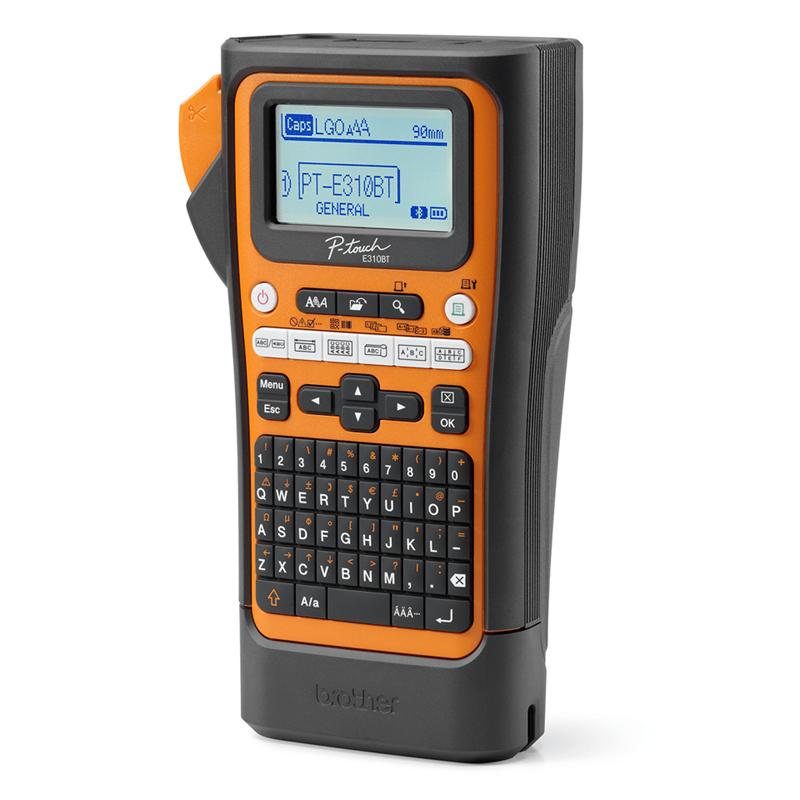

Product image for Brother PT-E310BTVP Thermal Label Printer - Gallery01

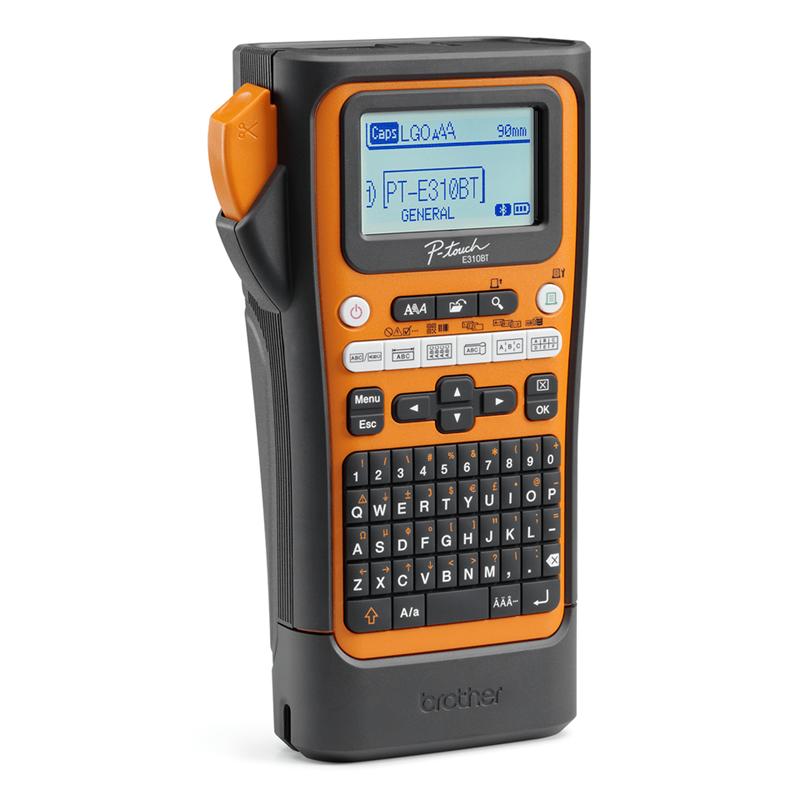

Product image for Brother PT-E310BTVP Thermal Label Printer - Gallery02

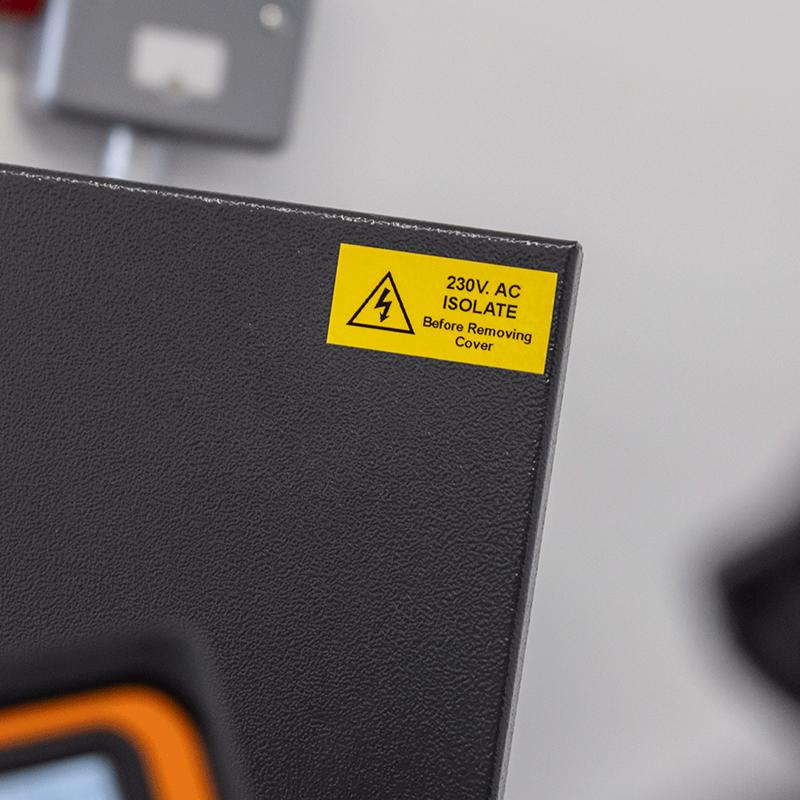

Product image for Brother PT-E310BTVP Thermal Label Printer - Gallery03

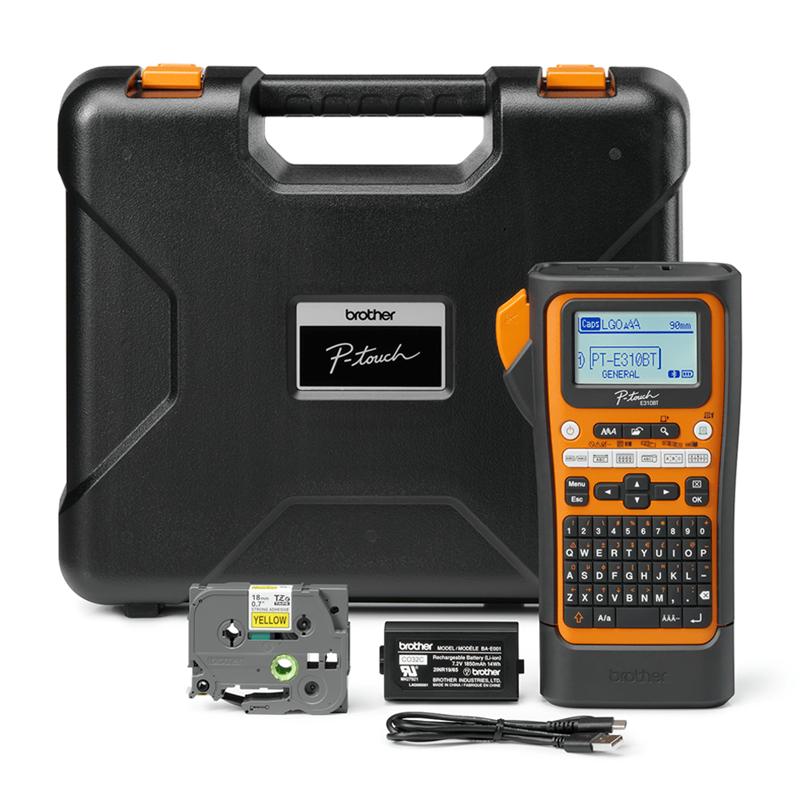

Product image for Brother PT-E310BTVP Thermal Label Printer - Gallery04

Product image for Brother PT-E310BTVP Thermal Label Printer - Gallery05

Compact desktop label printer
Up to 180 x 180 DPI Print
Print, Labels, QWERTY Keyboard
USB & Bluetooth

Was: £175.49
Save 25%

£134.99

Incl.
VAT

Add to Basket

Free UK Delivery

Specification

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Auto power off: Yes

Backlight display: Yes

Batteries included: Yes

Battery capacity: 14 Wh

Battery technology: Lithium-Ion (Li-Ion)

Battery type: Built-in battery

Battery weight: 190 g

Bluetooth: Yes

Bluetooth version: 5

Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E

Built-in display: Yes

Cables included: USB

Colour: No

Connectivity technology: Wired & Wireless

Display: LCD

Ethernet LAN: No

Keyboard layout: QWERTY

Keyboard number of keys: 64

Label memory: 99 label(s)

Languages support: Multi

Layers per pallet: 4 pc(s)

Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Master (outer) cases per pallet: 24 pc(s)

Master (outer) cases per pallet layer: 6 pc(s)

Maximum print height: 1.8 cm

Maximum print length: 1 m

Maximum printing width: 1.58 cm

Maximum resolution: 180 x 180 DPI

Memory capacity: 1500 characters

Mirror printing: Yes

Mobile operating systems supported: Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16

Multi-block: 99

Number of batteries supported: 1

Number of fonts: 7

Number of frames: 7

Number of printable dots: 128 dot

Number of printing lines (max): 5

Number of symbols: 477

Operating relative humidity (H-H): 20 - 80%

Operating temperature (T-T): 10 - 35 °C

Pallet gross height: 16.5 cm

Pallet gross weight: 258 kg

Pallet type: 1200 x 1000 mm

PC connection: USB 3.2 Gen 1 (3.1 Gen 1)

Power source type: Battery

Print preview: Yes

Print speed: 20 mm/sec

Print technology: Thermal transfer

Printer Type: Label

Product colour: Black, Orange

Products per pallet: 72 pc(s)

Quick start guide: Yes

Rechargeable battery: Yes

Rotated printing: Yes

Storage relative humidity (H-H): 20 - 80%

Storage temperature (T-T): -20 - 60 °C

Sustainability certificates: ENERGY STAR

Sustainability compliance: Yes

Tape type: HSE/TZe

Underline: Yes

USB port: Yes

Vertical printing: Yes

Warranty card: Yes

Wi-Fi: No

Windows operating systems supported: Windows 10, Windows 11

Wrist strap included: Yes

Product Details

Ensuring cables, conduits, switches and sockets are clearly identified with long lasting, durable labels is essential for electricians, datacom, telecom and security equipment installers. The Brother P-touch E310BT creates labels that help address ANSI/EIA/TIA-606A/B, and that meet the UL-969 standards. Specialist tapes for industrial use have been developed for specific labelling tasks, such as Heat Shrink tube for permanent cable identification, Flexible ID tape for making flag labels for cables, and strong adhesive tape for rough, uneven surfaces.
User-friendly design: With a built-in QWERTY keyboard, large backlit display with print preview and dedicated labelling functions at your fingertips, the PT-E310 Pro Labelling Machine simplifies label creation and printing, boosting productivity on-site. Print labels up to 18mm wide on-demand, wherever required.
Built to last, with labels that match: The Brother Pro Tape range has been developed and tested to meet the needs of professionals who require durable, long term identification solutions and includes specialist tapes such as strong adhesive, flexible ID (for wrapping around cables or creating flag labels), tamper evident and security tapes.
These laminated tapes are incredibly durable, and have been tested to withstand the effects of water, temperature extremes, moisture, chemicals, oil and abrasion
Instant access to common industry templates: 6x one-touch keys are located on the front panel of the machine and give instant access to label templates for general, faceplate, cable flag, cable wrap, patch panel and punchdown block identification, saving you time on-site.
Brother Pro Label Tool App: The PT-E310BT supports Brother's free Pro Label Tool app for Apple and Android mobile devices.
With its wide range of templates, such as danger and caution signs and cable identification, you can quickly and conveniently design industry-compliant labels on your smartphone or tablet to print on your labelling machine via Bluetooth. All you need to do is download the application and then search for your supported device.
Stay compliant: Using Brother's Pro Label Tool or P-touch Editor Software, benefit from automatic loading of ready-to-print label templates for cables, patch panels, faceplates, RCD consumer units, testing/inspecting/warning labels and network equipment identification from Brother's cloud server, meaning they're always up to date with the latest wiring regulations and standards.
